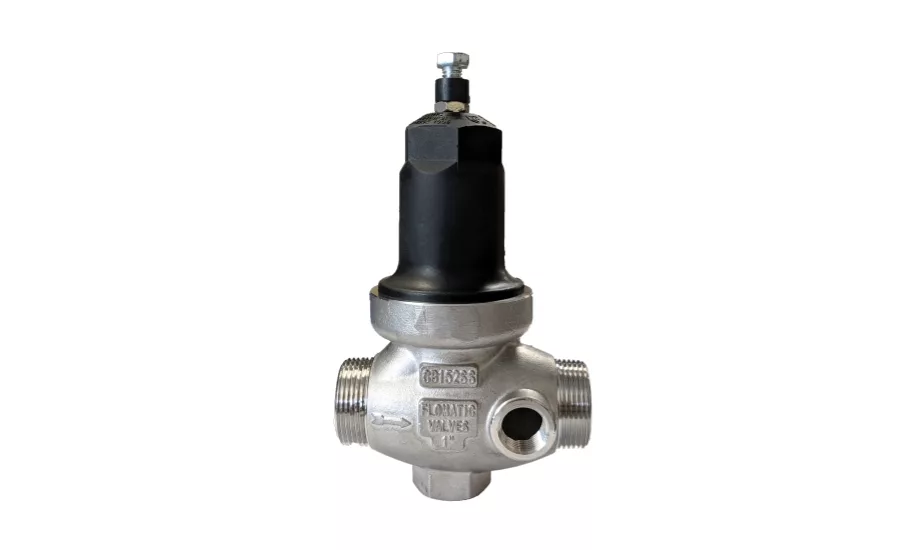

Flomatic has introduce the new Model Cycle Gard IV CB152SST, a stainless steel, direct-acting constant-pressure pump control valve with tappings.
The flow-efficient globe-style, all-stainless-steel body is equipped with a 1-inch NPT size female inlet (threaded) and with a 1-inch NPT union end female outlet connection. The standard pressure range for the model is 15-75 psi with an optional 15-150 psi range. The Cycle Gard IV CB152SST valve body’s maximum pressure rating is 400 psi. For long service life, Flomatic made all of the valve’s internal parts corrosion resistant, including a stainless steel spring and fasteners.
The unique Model Cycle Gard IV CB152SST constant-pressure valve is equipped with additional NPT tapped bosses for pressure gage, water tank or a pump pressure switch. It maintains a preset operating pressure and reduces rapid pump cycling, which the company calls proven protection for wells and booster pumps. Flomatic’s Cycle Gard IV valves regulate high upstream (inlet pressure) to a lower, regulated downstream (outlet pressure) constant pressure within a range, regardless of water flow. This is accomplished by an adjustable, spring-loaded balancing valve factory set to automatically regulate downstream pressure to 50 psi. The regulating pressure is field-adjustable in a wide range.
Flomatic, based in in Glens Falls, N.Y., manufactures a ranges of valves for domestic and municipal water and wastewater applications. For more information, visit www.flomatic.com, email firstname.lastname@example.org, call 800-833-2040 or fax 800-314-3155.
