SJE-Rhombus Upgrades In-Site CL Control Panel

EZ Connect Mobile App Increases System Data Accessibility

SJE app bluetooth
June 2, 2016

SJE-Rhombus has released a new and improved EZ Series In-Site CL data logging control panel. It now features wireless Bluetooth capabilities and an EZ Connect Mobile App for Android and iOS devices.

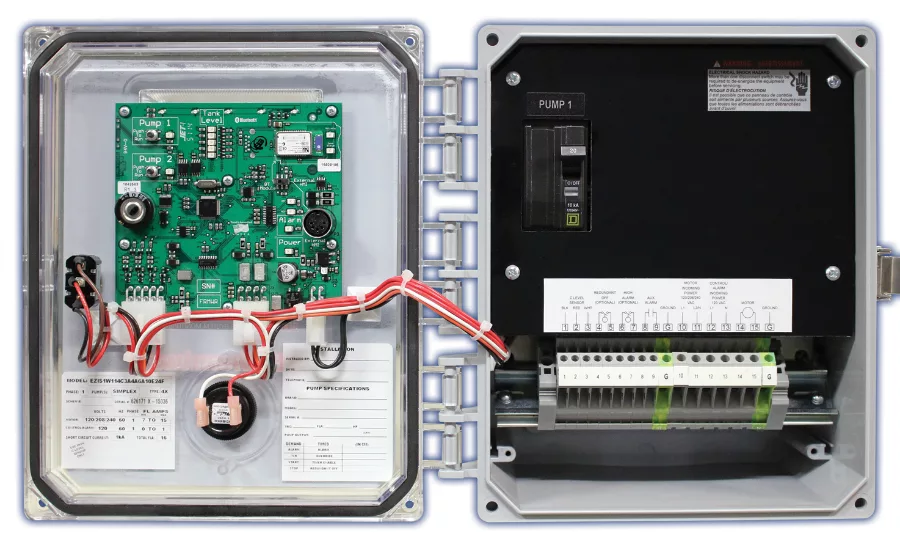

The EZ Series In-Site CL data logging control panel is designed to control one or two120/208/240V single-phase pumps in water and sewage installations. The panel utilizes the C-Level sensor for continuous level monitoring and records up to 4,000 system events, including pump run times, pump cycles, alarm conditions, HOA settings, power outages and service calls. The In-Site software formulates system data, creating reports quickly so system conditions can be identified and corrected.

Now as a standard feature, the panels include a Bluetooth Smart Ready module for wireless connection to an Android or iOS smartphone or tablet,allowing users to configure the panel, view system status or download data via the EZ Connect Mobile App. This enables safe and secure access to the control panel in all weather conditions, without having to bring a laptop to the jobsite or open the panel door to access information. The EZ Connect Mobile App is available for Android 4 or newer and iOS 9 or newer operating systems.

In addition to wireless data logging capabilities, the EZ Series In-Site CL control panel features a NEMA 4X weatherproof enclosure, lockable latch for added safety, audible/visual alarm, external alarm test/silence switch,circuit breakers,pump run and tank level indicators,control and alarm power indicators,and touch safe terminal blocks for easy field wiring. The panel is available for simplex and duplex; demand dose and timed dose applications can be converted in the field. The optional mounting post features are movable access door and can be mounted directly into the ground, over a 4-by-4 or conduit. Each panel is UL/cUL Listed and is backed by a  five-year limited warranty.

SJE-Rhombus is a control solutions provider, with 40 years of expertise in pump controls for a wide variety of residential, commercial, municipal, industrial and agricultural applications. Based in Detroit Lakes, Minn., SJE-Rhombus does business globally from seven locations across the U.S. and Asia. SJE-Rhombus is a 100-percent employee-owned, privately held company.   To learn more, visit www.sjerhombus.com.
