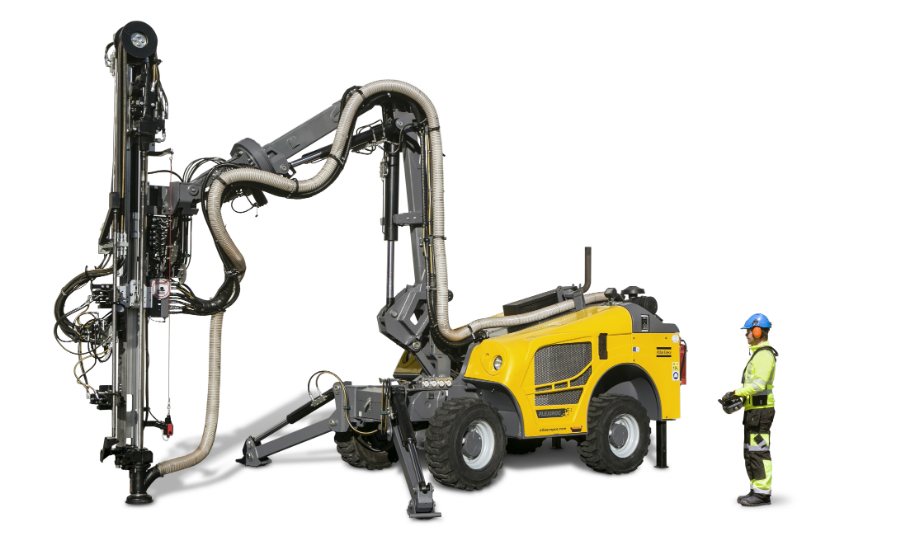

Atlas Copco has updated the FlexiROC T15 R to make drilling 1- to 2-inch-diameter blastholes easier.
The rubber-tired, four-wheel-drive top hammer drill rig covers rough terrain faster, has a longer reach for more holes in fewer moves and drills smoother, faster holes in tough conditions.
The upgraded FlexiROC T15 R rig’s 2.4 Hz Bluetooth radio remote control unit can control both tramming and drilling functions, which are powered by a 74-horsepower (55 kW) 2.8-liter Cummins Tier 4 Final engine. Tuning rpm with the radio remote control maximizes fuel efficiency.
The 15-foot-long boom and 12-foot extended feed have 110 degree side-to-side reach, allowing more holes to be drilled without repositioning the rig. Fewer moves mean more holes drilled at a faster rate and at a lower cost.
Fast setup is supported by the FlexiROC T15 R boom’s 360-degree rollover capability and the carrier’s sure-footed outrigger jack supports. Re-pinning the boom takes minutes. The combination of features enables operators to drill from practically any rig position.
The Rock Drill Control system automatically adjusts impact and feed speed of the COP 1028 rock drill in proportion to drill parameters such as rotation torque, reducing stress on tool and equipment for longer life. Optimized drilling also increases productivity and drilling performance, even in soft and cracked formations.
An optional hydraulic, variable force winch is available for added versatility in rough terrain and areas difficult to access.
Atlas Copco, based in Stockholm, Sweden, serves segments ranging from compressors and air treatment systems to construction, mining and drilling equipment. The company, founded in 1873, has more than 39,800 employees worldwide, and operates in more than 170 countries. Atlas Copco in North America operates in more than 109 locations and employs more than 4,500 people in the United States. For more information, visit www.atlascopco.us.
