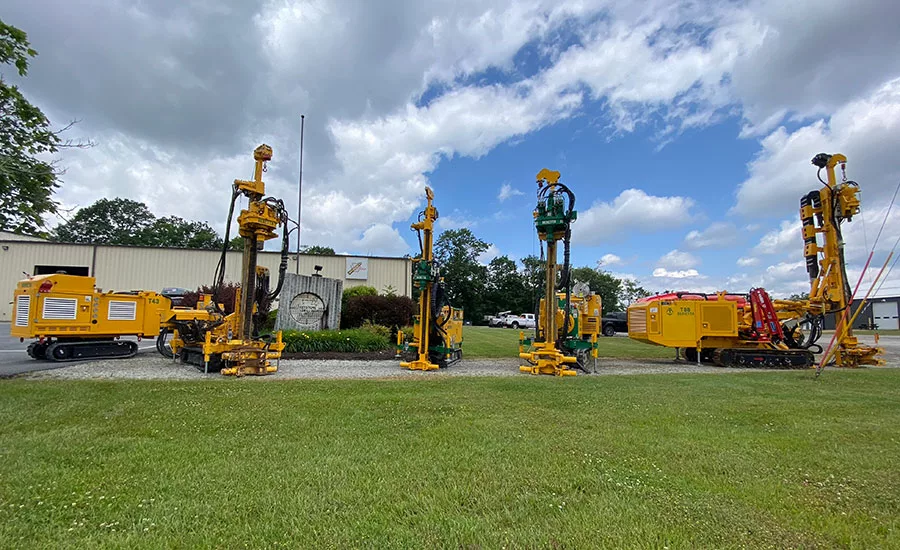

The Beretta Rig T43/2 is designed for drillers who need dependable performance in confined or complex jobsite conditions. Built by Beretta Alfredo, this compact tracked rig delivers a balance of power, control, and maneuverability, making it well-suited for geotechnical drilling, micropiles, anchors, tiebacks, and interior foundation work.

Where larger rigs struggle with access and positioning, the T43/2 thrives. Its narrow footprint and crawler mobility allow crews to work efficiently in restricted spaces, including inside structures or tight urban environments. A separate power pack design further enhances flexibility, allowing the rig to be positioned precisely while keeping heat and noise away from the operator.

Performance & Specifications

The T43/2 is available with multiple engine configurations to match job demands:

• Engine options: 75 HP (55 kW) or 140 HP (105 kW) diesel
• Mast working stroke: Up to 2,200 mm (approx. 7.2 ft)
• Pull/Push force: 40–65 kN
• Rotary head torque: Approximately 500–2,000 Nm, depending on configuration
• Rotary speed range: Up to 1,000 rpm
• Clamp sizes: Available for a wide range of drill string and casing diameters
• Operating width: As narrow as ~780 mm for tight access jobs

These specifications allow operators to fine-tune torque and speed for mixed ground conditions without overpowering the job.

Tooling & Jobsite Versatility

The T43/2 supports multiple rotary head and clamp configurations, making it adaptable for a variety of drilling methods and tooling setups. From soil investigation and core sampling to foundation anchoring and micropiles, the rig’s modular design allows contractors to expand capabilities without investing in a larger, more complex machine.

Maintenance access is straightforward, with service points laid out for quick daily checks and routine servicing.

How It Compares

Compared to compact rigs from other manufacturers, the Beretta T43/2 occupies a practical middle ground. While larger rigs offer higher horsepower and torque for heavy foundation work, they come with increased cost, footprint, and logistical demands. The T43/2 prioritizes access, control, and flexibility, making it a strong choice for drillers who regularly work in constrained environments or need a versatile secondary rig.

Bottom Line

The Beretta Rig T43/2 delivers reliable drilling performance in a compact, service-friendly package. For contractors focused on precision work, restricted access sites, and multi-application versatility, it offers a smart, efficient solution without unnecessary complexity.

Keystone Drill Services not only provides Beretta sales and rentals, but each rig comes backed by our field service team and parts department, so you can rest assured you have the support you need in the field.

Please contact Keystone Drill Services to buy or rent your next Beretta rig.
