How Do I Use Bentonite-Free Polymer HDD Drilling Fluids?

By George Dugan
horizontal directional drilling

Not every HDD job calls for bentonite. Pre-packaged, bentonite-free liquid polymer drilling fluids may be an option, depending on the soil conditions and project scope.

Source: CETCO Drilling Products photos

drilling fluid
Just like bentonite-based fluids, bentonite-free liquid polymer fluids can and should be adjusted to soil conditions.
drilling fluid
Bentonite-free liquid polymer fluids returns at the exit pit.
horizontal directional drilling
drilling fluid
drilling fluid
May 15, 2020

Over the last few years, the popularity of pre-packaged, bentonite-free liquid polymer drilling fluid products has grown in the horizontal directional drilling industry.

These types of drilling fluid products offer many benefits and conveniences. The list includes not having to haul pallets of bentonite to the jobsite, dust-free mixing of drilling fluids, and not having to dispose of empty pallets and bentonite bags. Another big benefit is the ease of mixing, which is beneficial because new hires with little experience and training are often assigned to mix drilling fluids. Pre-packaged, bentonite-free products are less complicated to understand and use.

Along with benefits and conveniences of using such products, one must be very aware of the limitations. The chief limitation is that these products are designed for small-diameter and short-distance HDD projects only.

Most pre-packaged, bentonite-free liquid polymer drilling fluid products consist of four basic components, starting with a base product that serves as a replacement for bentonite. Then you have additives for sand and clay, and a clay drilling detergent or clay dispersant. These last three products, in varying amounts, adjust the base drilling fluid to the different soil conditions, similar to the way one would adjust a bentonite drilling fluid.

Just like a bentonite drilling fluid, soil identification is key to success. We do this by simply separating the soils into fine/reactive soils (reactive clays and silts) and coarse/non-reactive soils (sand, gravel and rock). If your doubt the soil type, take a clear container of water and go to the entry or exit pit. Grab some of the soil they are drilling through and stir it in. Fine/reactive soils may thicken the water and clay may stick to whatever one stirs with. Coarse soils will quickly settle to the bottom and the water will not thicken. This simple test gives HDD contractors direction as to where to go with the drilling fluid mix when referencing the drilling fluid manufacturer’s product user chart.

As previously mentioned, pre-packaged, bentonite-free liquid polymer drilling fluid products do have limitations. Utilized these products for only small-diameter, short (500-foot or less) HDD bores. Do not use them for exceptionally challenging, high-risk bores or soil conditions. Contractors uncertain whether their drilling fluid mix rises to the challenge can use a simple cup test, potentially saving a lot of headaches, money, downhole tooling and drill stem. Remember, the ability of a drilling fluid to suspend and transport drill cutting out of the borehole is one of its most important functions. Quickly test suspension using a clear container, such as a plastic water bottle with the top cut off. Pour in some of the drilling fluid mix, go to the entry or exit pit, and get a sample of the material they are drilling through. Aggressively mix the sample into the fluid, and set aside for a few minutes. If the solids settle to the bottom in the cup, they will settle to the bottom in the hole, resulting in frackouts, stuck drill stem, humped roadways, or stretched or stuck product line. Contractors can and should use this type of cup test for any drilling fluid to determine whether it will perform one of its most important functions.

Last, but not least, monitor drilling fluids returns. They are the closest thing to real-time data a contractor has for determining how the drilling fluid interacts with soils it encounters. Monitoring drilling fluids returns can indicate a change in soil conditions, which may require a change in the drilling fluids mix. Monitoring drilling fluids returns can also play an important role in preventing stuck pipe or costly damage to pavement or surface structures. When back-reaming on an HDD project, contractors should always have someone at the exit pit that monitors drilling fluid returns and can immediately notify the driller of signs of trouble. If the returns start coming back with the consistency of peanut butter, for example, the driller may need to slow down the back-ream speed slightly to get a more flowable consistency in the returns and prevent out-running the drilling fluid and over-pressuring the formation.

Pre-packaged, bentonite-free liquid polymer HDD drilling fluid products are convenient to use, cost-effective and can work well in the applications for which they were designed. For effective use, contractors need to understand the soil conditions, follow manufacturer recommendations, monitor return flow and know the limitations to these products.



For more Drilling Fluids columns, visit www.thedriller.com/drillingfluids.

KEYWORDS: horizontal directional drilling utility drilling

Share This Story

Looking for a reprint of this article?
From high-res PDFs to custom plaques, order your copy today!

George dugan 200px

George Dugan is technical sales manager for CETCO Drilling Products, a Mineral Technologies Inc. company.

Recommended Content

JOIN TODAY
to unlock your recommendations.

Already have an account? Sign In

  • geotechnical drilling rig

    6 Onsite Phrases Environmental Drillers Hate

    Here are six phrases that highlight common frustrations...
    Geotechnical Investigation
    By: Jeff Garby
  • Wayne Nash

    Pipe Stuck? Common Causes and Solutions for Drillers

    If you have drilled for any length of time, sooner or...
    Oil & Gas Drilling
    By: Wayne Nash
  • submersible pumps, water well pumps

    Selecting and Sizing Submersible Pump Cable

    This article helps pump installers and servicers decide...
    Opinions
    By: Bob Pelikan
You must login or register in order to post a comment.

Report Abusive Comment

Subscribe For Free!
  • eNewsletters
  • Online Registration
  • Subscription Customer Service
  • Manage My Preferences

The Driller Newscast: New York Geo Talks 2025 Conference with Hands-on Driller Education

The Driller Newscast: New York Geo Talks 2025 Conference with Hands-on Driller Education

The Driller Newscast, Episode 147: Global Geothermal Collaboration at NY-GEO 2025

The Driller Newscast, Episode 147: Global Geothermal Collaboration at NY-GEO 2025

The Driller Newscast: Coiled Tubing Drilling and the Future of Geothermal

The Driller Newscast: Coiled Tubing Drilling and the Future of Geothermal

The Driller Newscast: 21st Century Drillers | Part 1 DEMAND

The Driller Newscast: 21st Century Drillers | Part 1 DEMAND

More Videos

Sponsored Content

Sponsored Content is a special paid section where industry companies provide high quality, objective, non-commercial content around topics of interest to the The Driller audience. All Sponsored Content is supplied by the advertising company and any opinions expressed in this article are those of the author and not necessarily reflect the views of The Driller or its parent company, BNP Media. Interested in participating in our Sponsored Content section? Contact your local rep!

close
  • demo of a DM450 drilling rig during a customer factory visit
    Sponsored byGeoprobe

    Built for You: Smarter Drill Rigs, Stronger Support, Bigger Opportunities

Popular Stories


Two Brothers' Journey Through the Drilling Industry

AI and Drought Concerns

AI’s Growing Thirst for Water and Power

demo of a DM450 drilling rig during a customer factory visit

Built for You: Smarter Drill Rigs, Stronger Support, Bigger Opportunities

The Driller Classifieds

COMPRESSORS

EAST WEST MACHINERY & DRILLING IS BUYING AND SELLING AIR COMPRESSORS, AIR BOOSTERS, AIR ENDS & PARTS
Company: East West Machinery

DRILL RIGS

LOOKING FOR LATE MODEL TOPHEADS & DRILLTECH D25'S
Company: Spikes’s Rig Sales

DRILL RIG PARTS

MEETING DRILLERS NEEDS AROUND THE WORLD
Company: East West Machinery

ELEVATORS

SEMCO INC. PIPE ELEVATORS
Company: Semco Inc.

GROUTERS

GROUTING EQUIPMENT - GROUT PUMPS & GROUT HOSE REELS
Company: Geo-Loop Inc.

PUMP HOISTS

SEMCO INC. - BASIC PUMP HOISTS
Company: Semco Inc.

WELL PACKERS

LANSAS PRODUCTS - INFLATABLE WELL PACKERS
Company: Vanderlans Lansas Products

WELL SCREENS

WELL SCREENS & SLOTTED PIPE
Company: Alloy Screen Works

Products

Water Quality Engineering: Physical / Chemical Treatment Processes

Water Quality Engineering: Physical / Chemical Treatment Processes

By carefully explaining both the underlying theory and the underlying mathematics, this text enables readers to fully grasp the fundamentals of physical and chemical treatment processes for water and wastewater.

See More Products

Subscribe to The Driller Newscast

Related Articles

  • polymer-based drilling fluids for HDD

    Polymer Drilling Fluids for Small-Diameter HDD Bores

    See More
  • George Dugan

    How Does MMO Work for HDD Drilling Jobs?

    See More
  • George Dugan

    HDD Drilling Fluids and the Need for Gel Strength

    See More
×
Not every HDD job calls for bentonite. Pre-packaged, bentonite-free liquid polymer drilling fluids may be an option, depending on the soil conditions and project scope. Source: CETCO Drilling Products photos

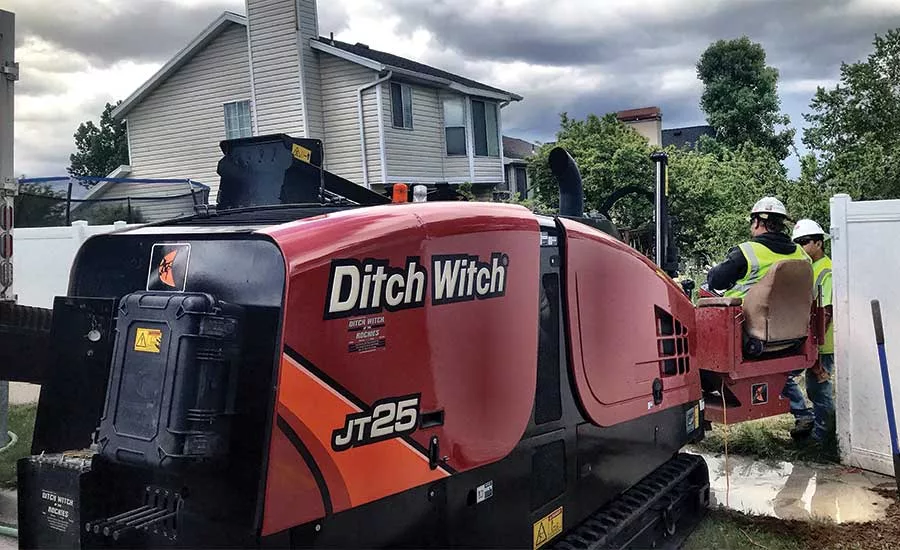

Just like bentonite-based fluids, bentonite-free liquid polymer fluids can and should be adjusted to soil conditions.

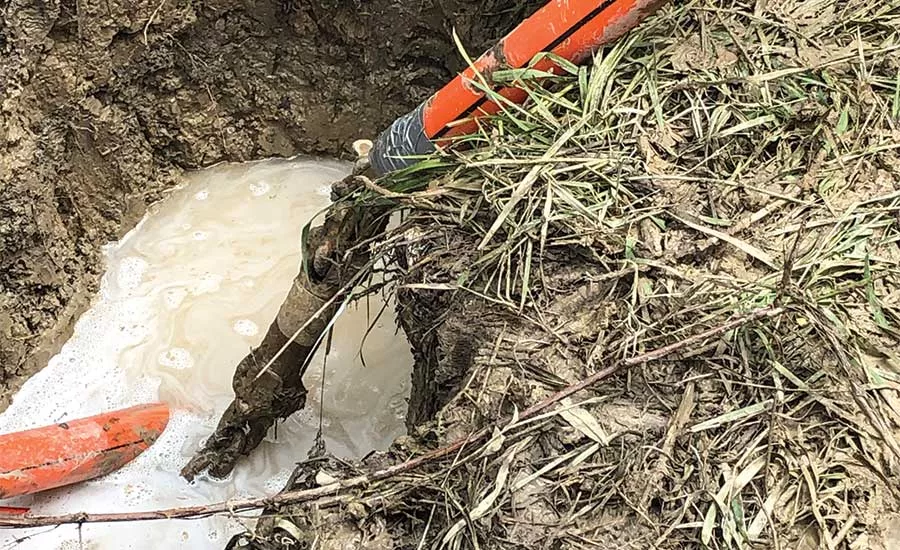

Bentonite-free liquid polymer fluids returns at the exit pit.
