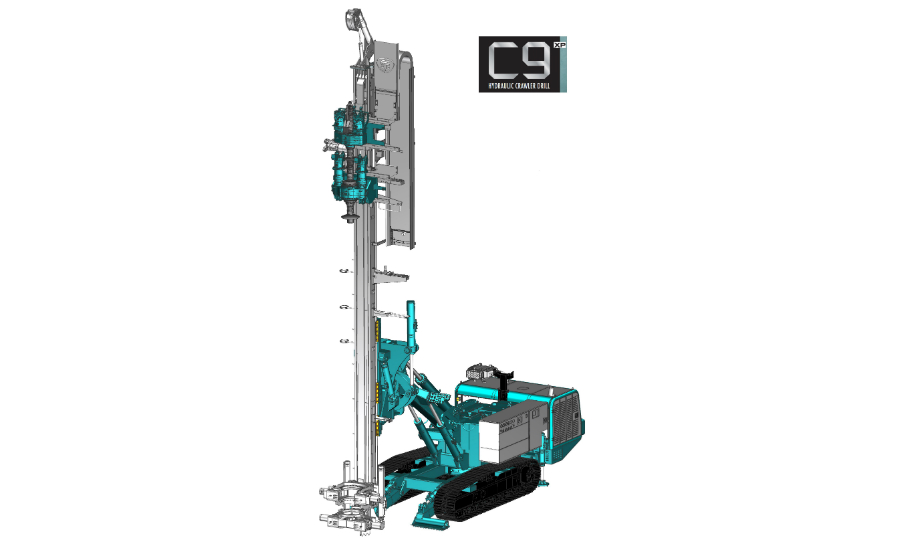

Casagrande Italy’s model C9XP for North America is a hydraulic, remote-controlled crawler drill. Enhancements include a TIER IV Final Cummins QSB 6.7 194 kW, 264-horsepower engine; a mast with 32.8 feet of stroke in single head configuration with an extraction force of 33,721 pounds; M5-M5S-C clamps with a sliding breakout clamp; and a working range of 3 to 16 inches. Its extracting clamps have a force of 44,962 pounds and an extraction stroke of 39.3 inches. The rig’s operating weight is 28 metric tons. www.casagrande-usa.com
Casagrande C9XP
